Securing a Containerized Django Application with Let's Encrypt

How do I set up an SSL Certificate for a Django application?

In this tutorial, we'll look at how to secure a containerized Django app running behind an HTTPS Nginx proxy with Let's Encrypt SSL certificates.

This tutorial builds on Dockerizing Django with Postgres, Gunicorn, and Nginx. It assumes you understand how to containerize a Django app along with Postgres, Nginx, and Gunicorn.

Nowadays you simply can't go to production with your application running over HTTP. Without HTTPS, your site is less secure and trustworthy. With Let's Encrypt, which simplifies the process of obtaining and installing SSL certificates, there's simply no excuse anymore not to have HTTPS.

Django on Docker Series:

Dockerizing Django with Postgres, Gunicorn, and Nginx

Securing a Containerized Django Application with Let's Encrypt (this tutorial!)

Deploying Django to AWS with Docker and Let's Encrypt

Prerequisites

To follow this tutorial you will need:

a domain name
a running Linux virtual machine with Docker and Docker Compose installed where your app will be deployed (AWS EC2, Google Compute Engine, DigitalOcean, Linode are all viable options)

Need a cheap domain to practice with? Several domain registrars have specials on '.xyz' domains. Alternatively, you can create a free domain at Freenom.

Approach

There are a number of different ways to secure a containerized Django app with HTTPS. Arguably, the most popular approach is to add a new service to your Docker Compose file that utilizes Certbot for issuing and renewing SSL certificates. While this is perfectly valid, we'll take a slightly different approach and use the following projects:

nginx-proxy - used to automatically build your Nginx proxy configuration for running containers where each container is treated as a single virtual host
acme-companion - used to issue and renew Let's Encrypt SSL certificates for each of the containers proxied by nginx-proxy

Together, these projects simplify the management of your Nginx configuration and SSL certificates.

Another option is to use Traefik instead of Nginx. In short, Traefik works with Let's Encrypt to issue and renew certificates. For more, check out Dockerizing Django with Postgres, Gunicorn, and Traefik.

Let's Encrypt

When the app is deployed for the first time, you should follow these two steps to avoid issues with certificates:

Start by issuing the certificates from Let's Encrypt's staging environment
Then, when all is running as expected, switch to Let's Encrypt's production environment

Why?

To protect their servers, Let's Encrypt enforces rate limitations on their production validation system:

5 validation failures per account, per hostname, per hour
50 certificates may be created per domain per week

If you make a typo in your domain name or in a DNS entry or anything similar, your request will fail, which will count against your rate limit, and you'll have to attempt to issue a new certificate.

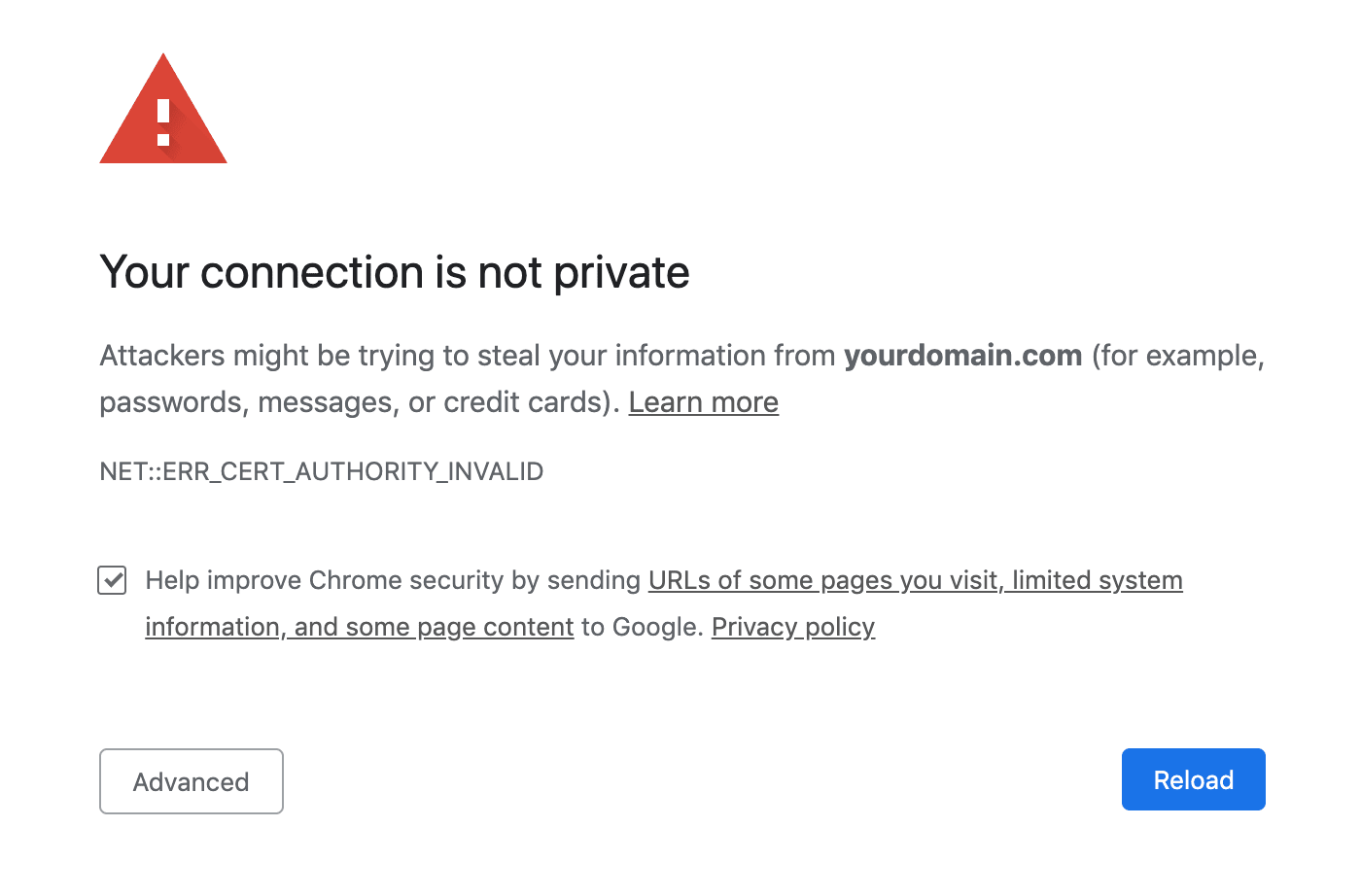

To avoid being rate limited, during development and testing, you should use Let's Encrypt's staging environment for testing their validation system. The rate limits are much higher on the staging environment, which is better for testing. Just be aware that the issued certificates in staging are not trusted publicly, so once everything is working, you should switch over to their production environment.

Project Setup

First, clone down the contents from the GitHub project repo:

$ git clone https://github.com/testdrivenio/django-on-docker django-on-docker-letsencrypt
$ cd django-on-docker-letsencrypt

This repository contains everything that you need to deploy a Dockerized Django app minus the SSL certificates, which we'll be adding in this tutorial.

Django Configuration

First, to run the Django app behind an HTTPS proxy you'll need to add the SECURE_PROXY_SSL_HEADER setting to settings.py:

SECURE_PROXY_SSL_HEADER = ("HTTP_X_FORWARDED_PROTO", "https")

In this tuple, when X-Forwarded-Proto is set to https the request is secure.

You'll also need to update CSRF_TRUSTED_ORIGINS inside settings.py:

CSRF_TRUSTED_ORIGINS = os.environ.get("CSRF_TRUSTED_ORIGINS").split(" ")

Docker Compose

It's time to configure Docker Compose.

Let's add a new Docker Compose file for testing purposes called docker-compose.staging.yml:

version: '3.8'

services:
  web:
    build:
      context: ./app
      dockerfile: Dockerfile.prod
    command: gunicorn hello_django.wsgi:application --bind 0.0.0.0:8000
    volumes:
      - static_volume:/home/app/web/staticfiles
      - media_volume:/home/app/web/mediafiles
    expose:
      - 8000
    env_file:
      - ./.env.staging
    depends_on:
      - db
  db:
    image: postgres:13.0-alpine
    volumes:
      - postgres_data:/var/lib/postgresql/data/
    env_file:
      - ./.env.staging.db
  nginx-proxy:
    container_name: nginx-proxy
    build: nginx
    restart: always
    ports:
      - 443:443
      - 80:80
    volumes:
      - static_volume:/home/app/web/staticfiles
      - media_volume:/home/app/web/mediafiles
      - certs:/etc/nginx/certs
      - html:/usr/share/nginx/html
      - vhost:/etc/nginx/vhost.d
      - /var/run/docker.sock:/tmp/docker.sock:ro
    depends_on:
      - web
  acme-companion:
    image: nginxproxy/acme-companion
    env_file:
      - ./.env.staging.proxy-companion
    volumes:
      - /var/run/docker.sock:/var/run/docker.sock:ro
      - certs:/etc/nginx/certs
      - html:/usr/share/nginx/html
      - vhost:/etc/nginx/vhost.d
      - acme:/etc/acme.sh
    depends_on:
      - nginx-proxy

volumes:
  postgres_data:
  static_volume:
  media_volume:
  certs:
  html:
  vhost:
  acme:

Add a .env.staging.db file for the db container:

POSTGRES_USER=hello_django
POSTGRES_PASSWORD=hello_django
POSTGRES_DB=hello_django_prod

Change the values of POSTGRES_USER and POSTGRES_PASSWORD to match your user and password.

We already looked at the web and db services in the previous tutorial, so let's dive into the nginx-proxy and acme-companion services.

Databases are critical services. Adding additional layers, such us Docker, adds unnecessary risk in production. To simplify tasks such as minor version updates, regular backups, and scaling, it's recommended to use a managed service like AWS RDS, Google Cloud SQL, or DigitalOcean's Managed Database.

Nginx Proxy Service

For this service, the nginx-proxy project is used for generating a reverse proxy configuration for the web container using virtual hosts for routing.

Be sure to review the README on the nginx-proxy repo.

Once up, the container associated with nginx-proxy automatically detects containers (in the same network) that have the VIRTUAL_HOST environment variable set and dynamically updates its virtual hosts configuration.

Go ahead and add a .env.staging file for the web container:
